Side-by-side aerobatic trainer — entry level training and cross country performance in one airframe
RUD Aero is an international aircraft design bureau offering proven aircraft designs, world-class engineering expertise, and advanced UAV conversion capabilities.
Acquire complete, flight-proven aircraft designs backed by years of development and real-world performance data. Our portfolio spans aerobatic trainers, multipurpose platforms, and jet trainers — ready for production under licence.
Leverage decades of hands-on experience in aerospace design, advanced composite structures, and flight testing. Our engineering team offers consultancy, structural analysis, and full design-to-certification support for new and existing airframes.
Transform proven manned aircraft platforms into autonomous unmanned aerial vehicles. We provide full conversion engineering — from autopilot integration and ground control systems to mission-specific payload configurations for surveillance, training, and beyond.
Four models engineered for missions from aerobatic training to jet combat operations

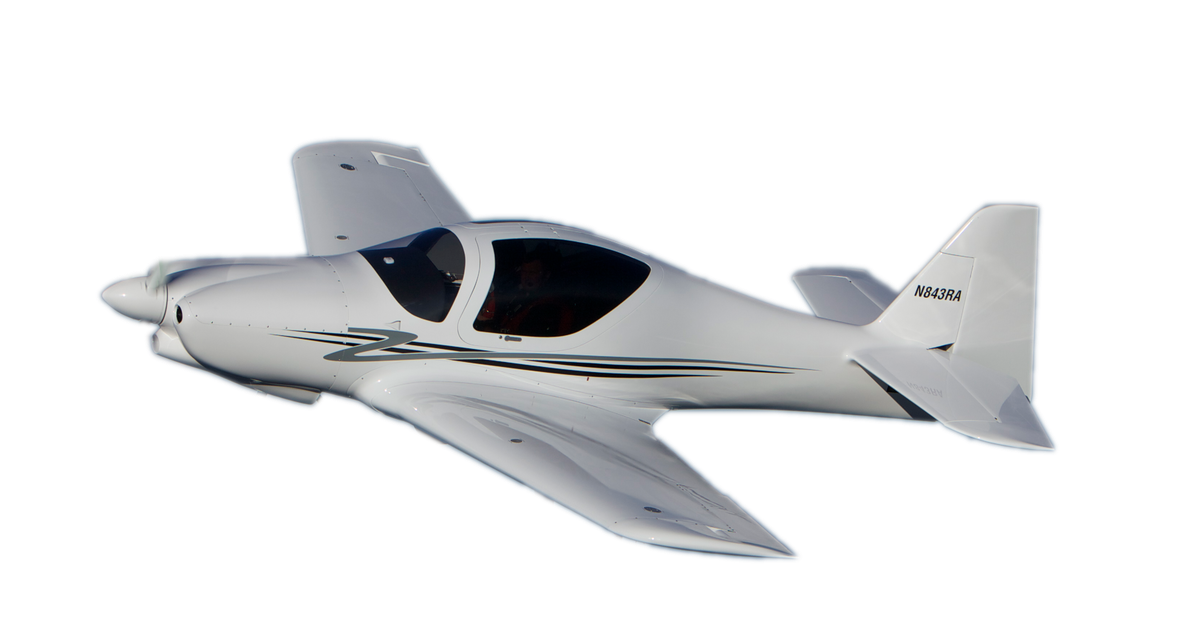

Aerobatic Trainer
A derivative of the RA-2, this side-by-side trainer focuses on entry level aerobatic training and improved cross country performance. The RA-3 brings together the proven carbon fiber construction of the RA-2 platform with a wider cockpit designed for instructor and student seated side by side.

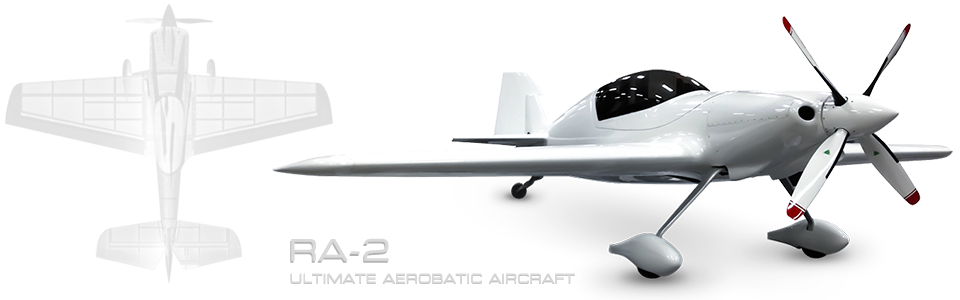

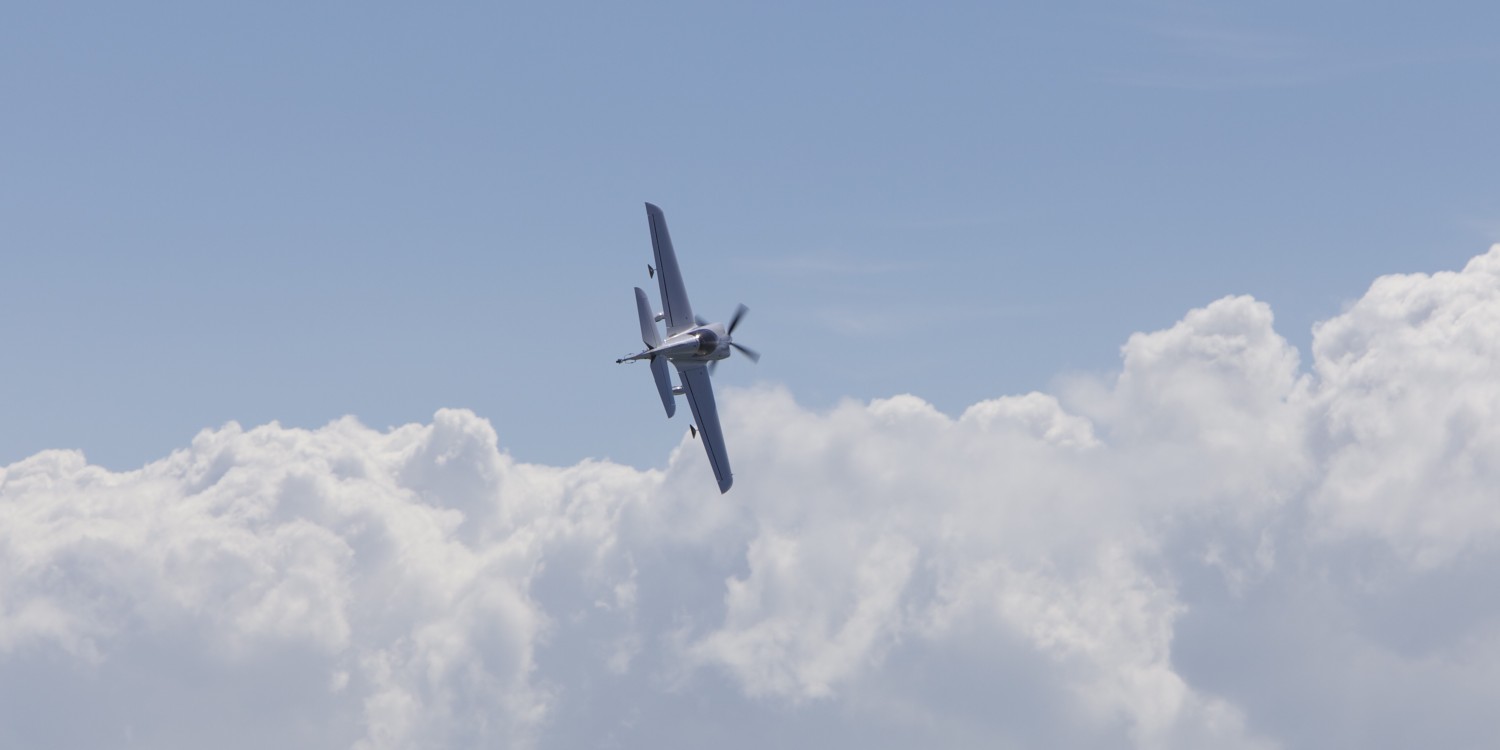

Unlimited Aerobatic Aircraft
Specifically designed to exceed the capabilities of existing aerobatic aircraft by combining light weight composite structures with high output performance. The RA-2's carbon fiber airframe sustains ±13 Gs with a 2x safety factor.
| RA-2 | RA-2L | |
|---|---|---|
| Engine | 315 hp Lycoming AEIO 540 | 180 hp Lycoming IO 360 |
| Propeller | MT 4-blade constant speed | MT 3-blade constant speed |
| Max Cruise | 182 kts | 169 kts |
| Stall Speed | 55 kts | 45 kts |
| Rate of Climb | 3,842 ft/min | 2,158 ft/min |
| Load Limits (SF 2) | ±13 Gs | ±8 Gs |
| Empty Weight | 1,350 lbs | 1,000 lbs |
| Max Gross | 1,885 lbs | 1,700 lbs |
| Useful Load | 535 lbs | 700 lbs |
| Wing Span | 25 ft | |
| Length | 21.25 ft | |
| Avionics | 7" Dynon Skyview | |
| Construction | All carbon fiber | |

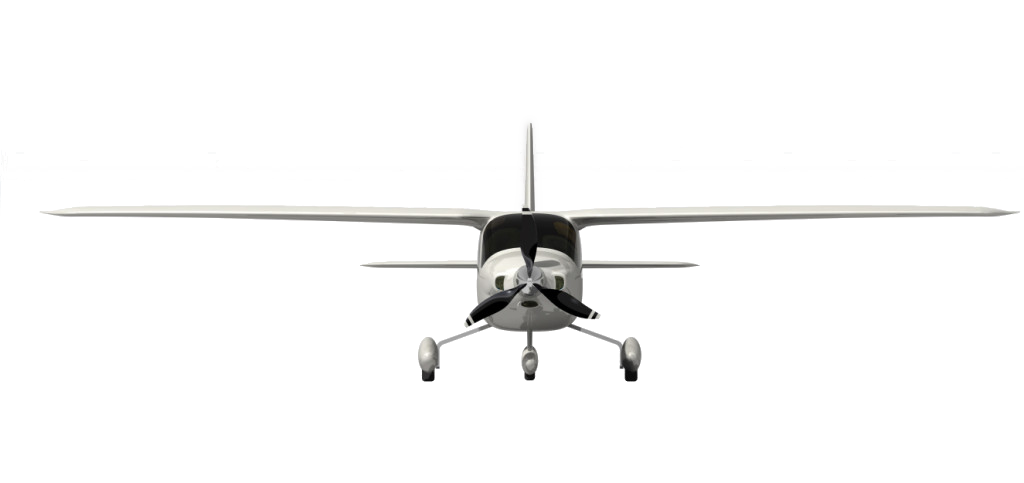

High Wing Multipurpose Aircraft
A four-place high-wing trainer/cruiser optimized for private, commercial and instrument flight training and comfortable economical cross-country travel. The rugged airframe and oversized wheels allow access to unimproved landing strips.
| Config 1 | Config 2 | Config 3 | |
|---|---|---|---|
| Engine | 180 hp IO 360 | 310 hp IO 540 | 310 hp IO 540 |
| Landing Gear | Fixed Tricycle | Fixed Tricycle | Retractable |
| Empty Weight | 1,400 lbs | 1,600 lbs | 1,800 lbs |
| Max Gross | 2,495 lbs | 3,100 lbs | 3,200 lbs |
| Useful Load | 1,095 lbs | 1,500 lbs | 1,500 lbs |
| Occupants | 4 (optional 5-seat config) | ||
| Length | 27.4 ft | ||
| Wing Span | 39 ft | ||
| Cabin Width | 46.5 in | ||
| Construction | All carbon fiber | ||

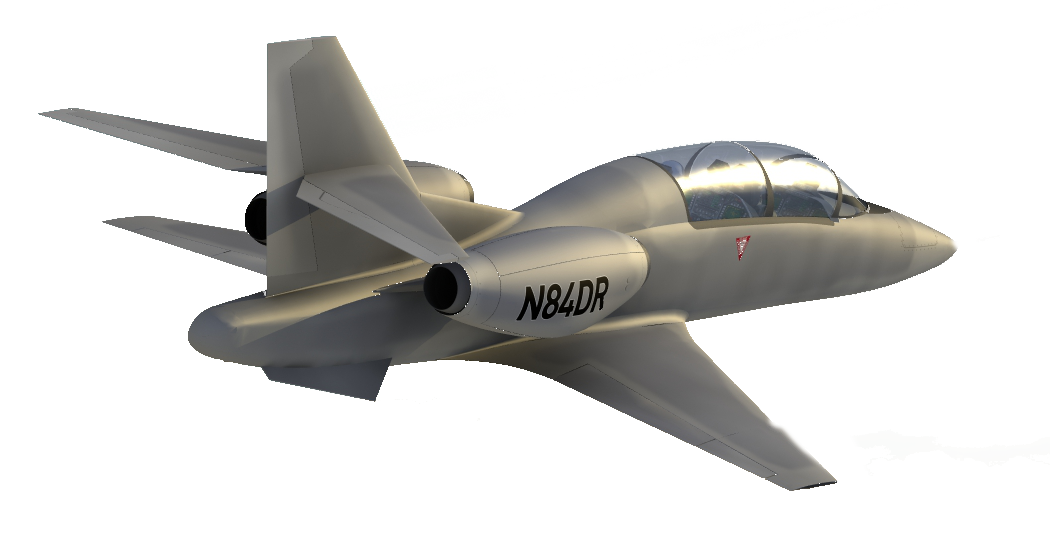

Jet Trainer / Light Attack
High speed jet trainer originally developed by ATG and the Israeli Aerospace Industry to satisfy jet trainer roles in various air forces. Features Martin-Baker ejection seats, HUD, multi-mode radar, and C4ISR integration.
